Frequency UHF

What is it?

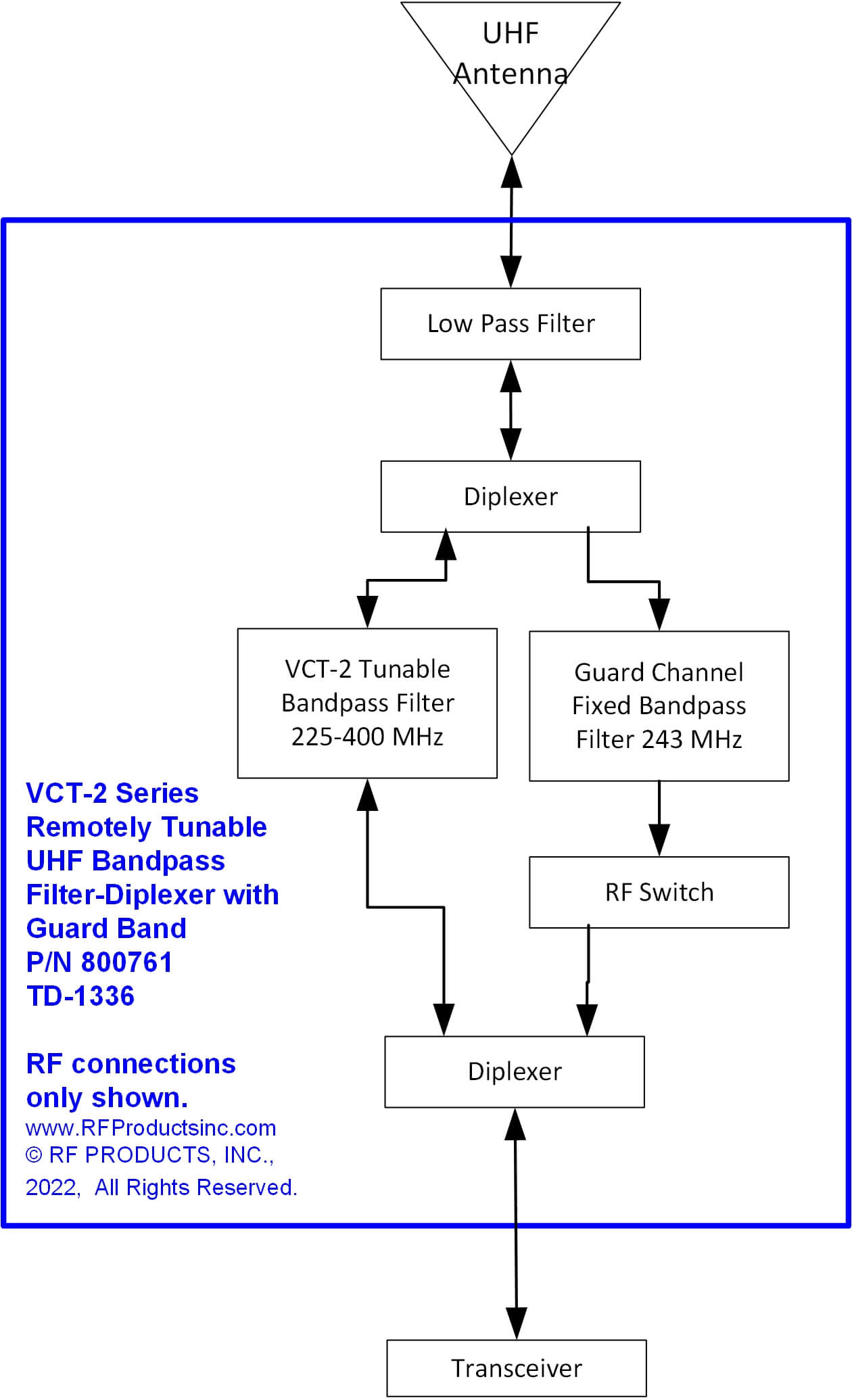

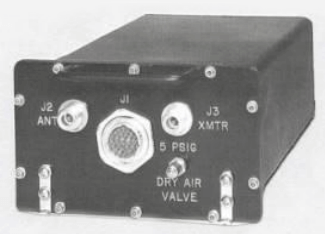

• A dual-path filter system (also called a “Diplexer”) that includes a tuneable bandpass filter for 225-400 MHZ and a fixed bandpass filter for 243 MHz guard frequency.
• Filter tuning and path switching are remotely controlled.

What does it do?

• The 225-400 MHz tuneable bandpass filter adds to the isolation between separate antennas to enable multiple collocated radios to operate simultaneously in the 225-400 MHz range.
• When a radio with built in guard is in receive mode, this dipexer enables the radio to receive at its main freqnecy and at the 243 MHz guard frequency simultaneously.

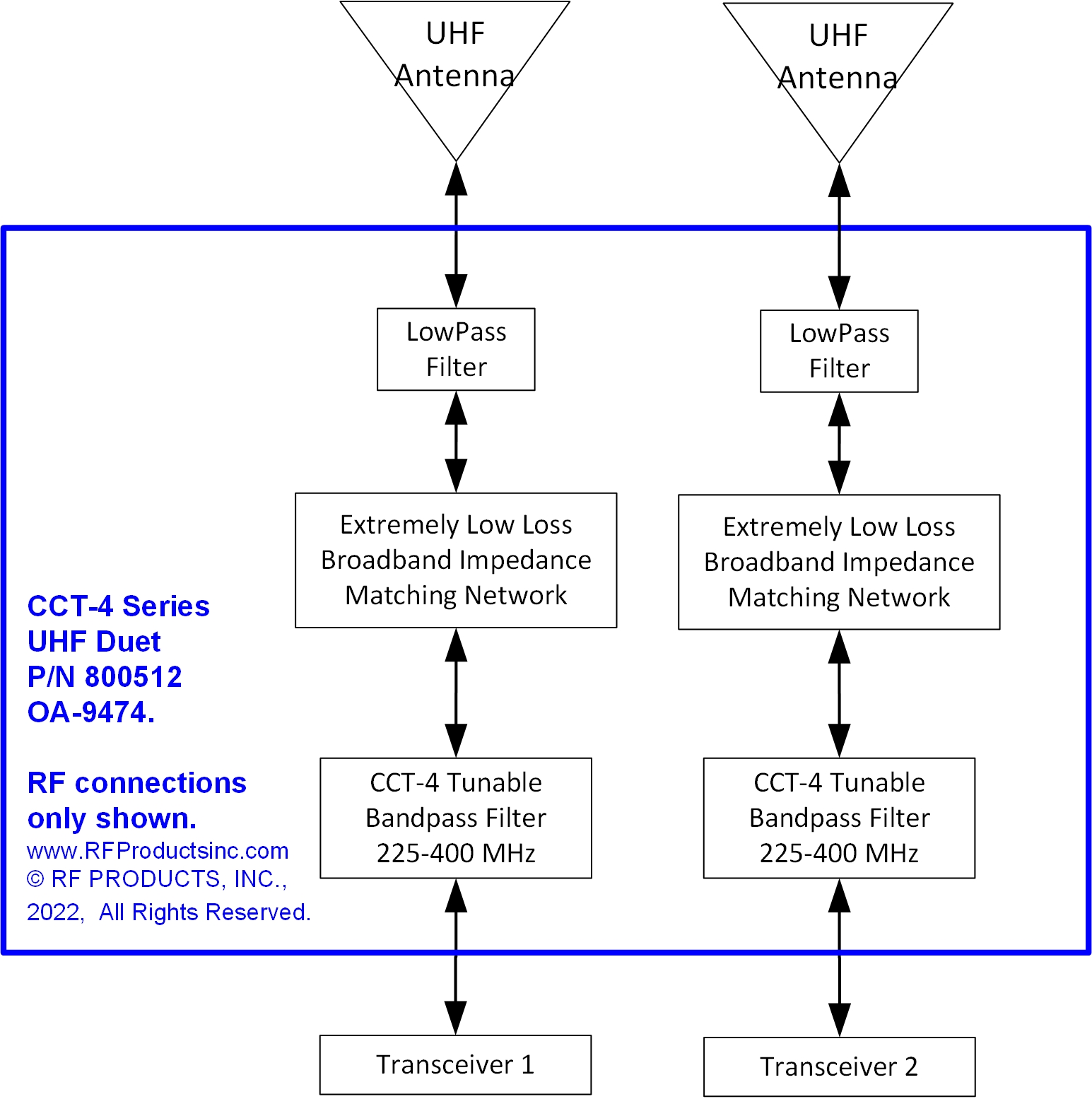

What is it?

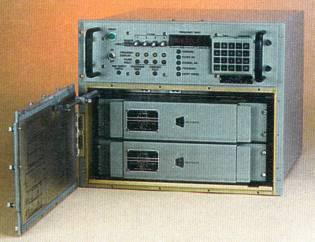

• A 2-port filter/Uncoupled “Duet” subsystem.
• Filter tuning remotely controlled.
• 2 tunable bandpass 4-pole filters, 2 single-port impedance matching networks each with its own low pass filter for harmonics suppression.
• Automated filter output switching termination not needed because the filters are not combined to one antenna.

What does it do?

• Enables 2 transceivers to operate simultaneously with each radio on its own antenna in the 225-400 MHz range, in any combination of transmit/receive modes.
• Accepts MIL-STD-188 serial remote control to 7,000 frequencies per filter for filter tuning, USN standard interface.
• External adapter available to accept remote control interface from ARC-210 family of radios. Can also provide an adapter for other radio interfaces.
• Because there is no combiner, not needed are the other subsystem operation management functions such as transmit inhibit during filter tuning, adjacent channel separation management, cross tuning prevention, etc.

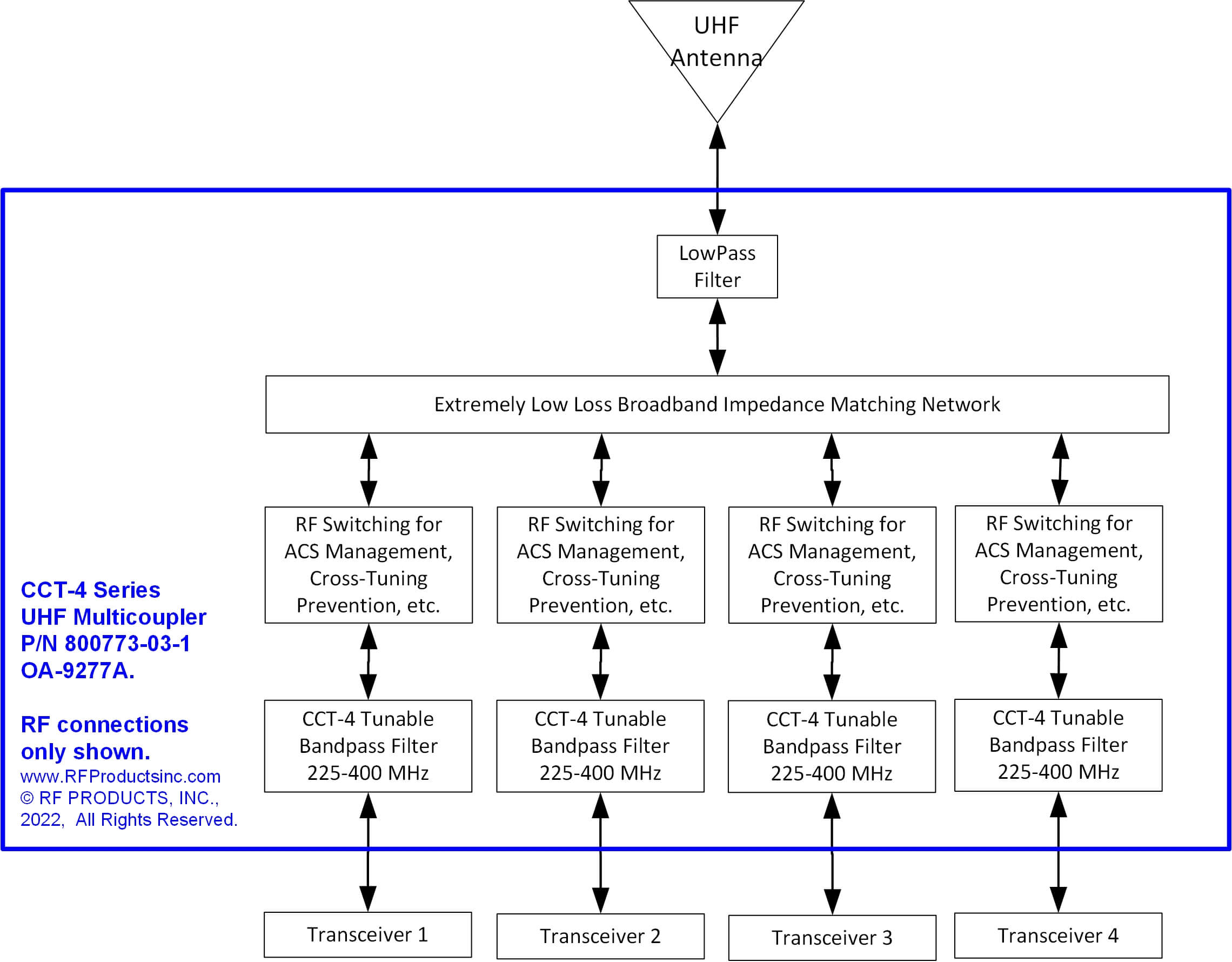

What is it?

• A 4-port filter/multicoupler.
• 4 tunable bandpass 4-pole filters, extremely-low-loss, 4-port impedance matching network with low pass filter for harmonics suppression, and filter output switching termination.
• Filter tuning remotely controlled.
• Built-in filter/termination RF switching automatically controlled by Multicoupler.
• Includes local control via front panel display, keypad and indicator lights, and remote control via serial interface.

What does it do?

• Enables 4 transceivers to operate simultaneously on one antenna in the 225-400 MHz range, in any combination of transmit/receive modes.
• Accepts MIL-STD-188 serial remote control to 7,000 frequencies per filter for filter tuning and remote diagnostics, USN standard interface.
• External adapter available to accept remote control interface from ARC-210 family of radios. Can also provide anadapter for other radio interfaces.
• From previous (pre-2005 year) CCT-4 multicoupler versions: Obsoletefunctions and parts deleted. Diminished source parts replaced. Backward/forward interchangeability retained.
• Includes many other subsystem operation management functions such as transmit inhibit during filter tuning, adjacent channel separation management, cross tuning prevention, etc.

What is it?

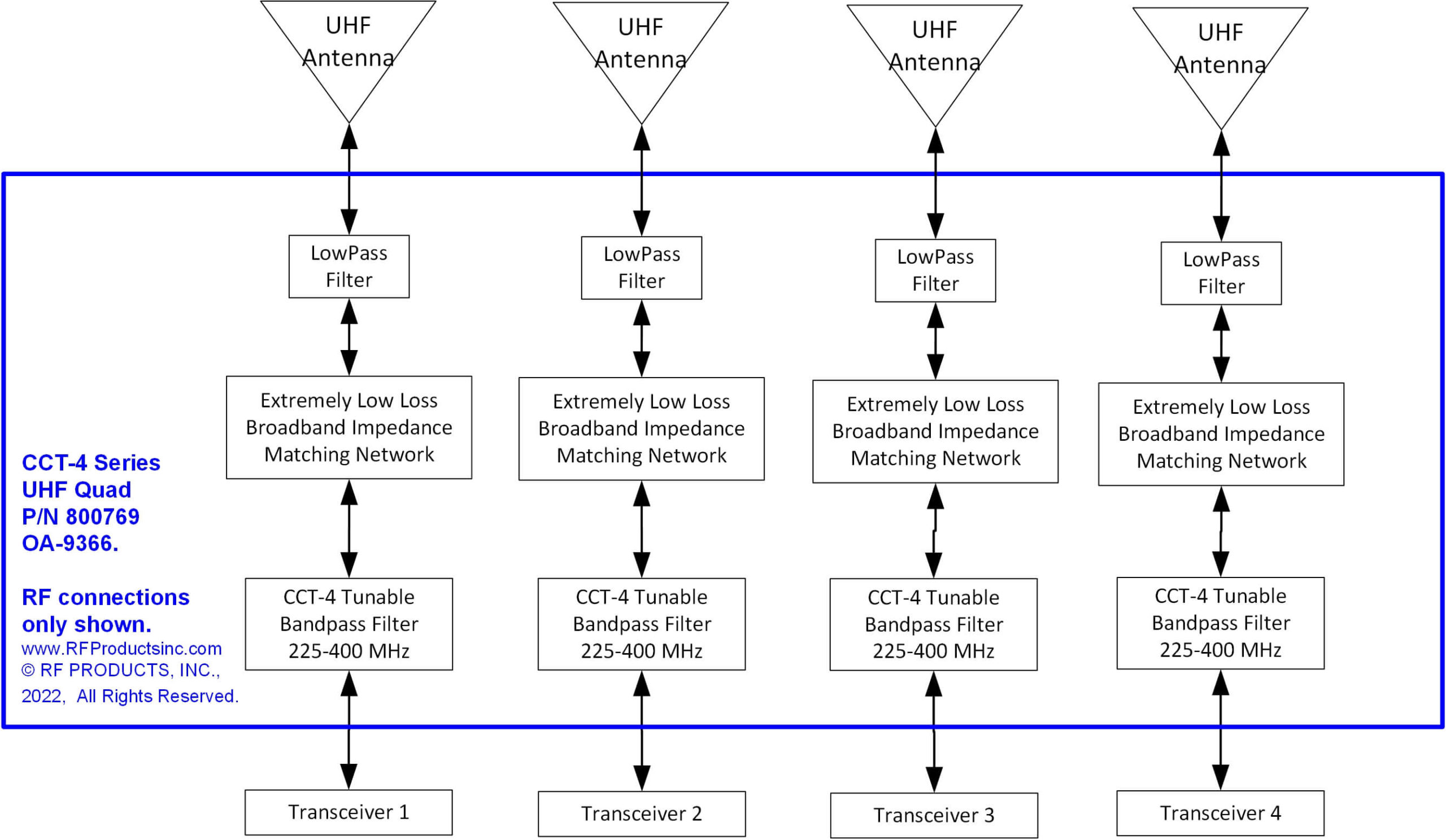

• A 4-port filter/Uncoupled “Quad” subsystem.
• Filter tuning remotely controlled.
• 4 tunable bandpass 4-pole filters, extremely-low-loss, 4 single-port impedance matching networks each with its own low pass filter for harmonics suppression.
• Automated filter output switching termination not needed because the filters are not combined to one antenna.

What does it do?

• Enables 4 transceivers to operate simultaneously with each radio on its own antenna in the 225-400 MHz range, in any combination of transmit/receive modes.
• Accepts MIL-STD-188 serial remote control to 7,000 frequencies per filter for filter tuning, USN standard interface.
• External adapter available to accept remote control interface from ARC-210 family of radios. Can also provide an adapter for other radio interfaces.
• From previous multicoupler version: Obsolete functions and parts deleted. Diminished source parts replaced. Backward/forward interchangeability retained.
• Because there is no combiner, not needed are the other subsystem operation management functions such as transmit inhibit during filter tuning, adjacent channel separation management, cross tuning prevention, etc.

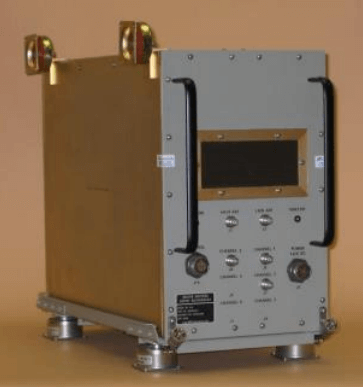

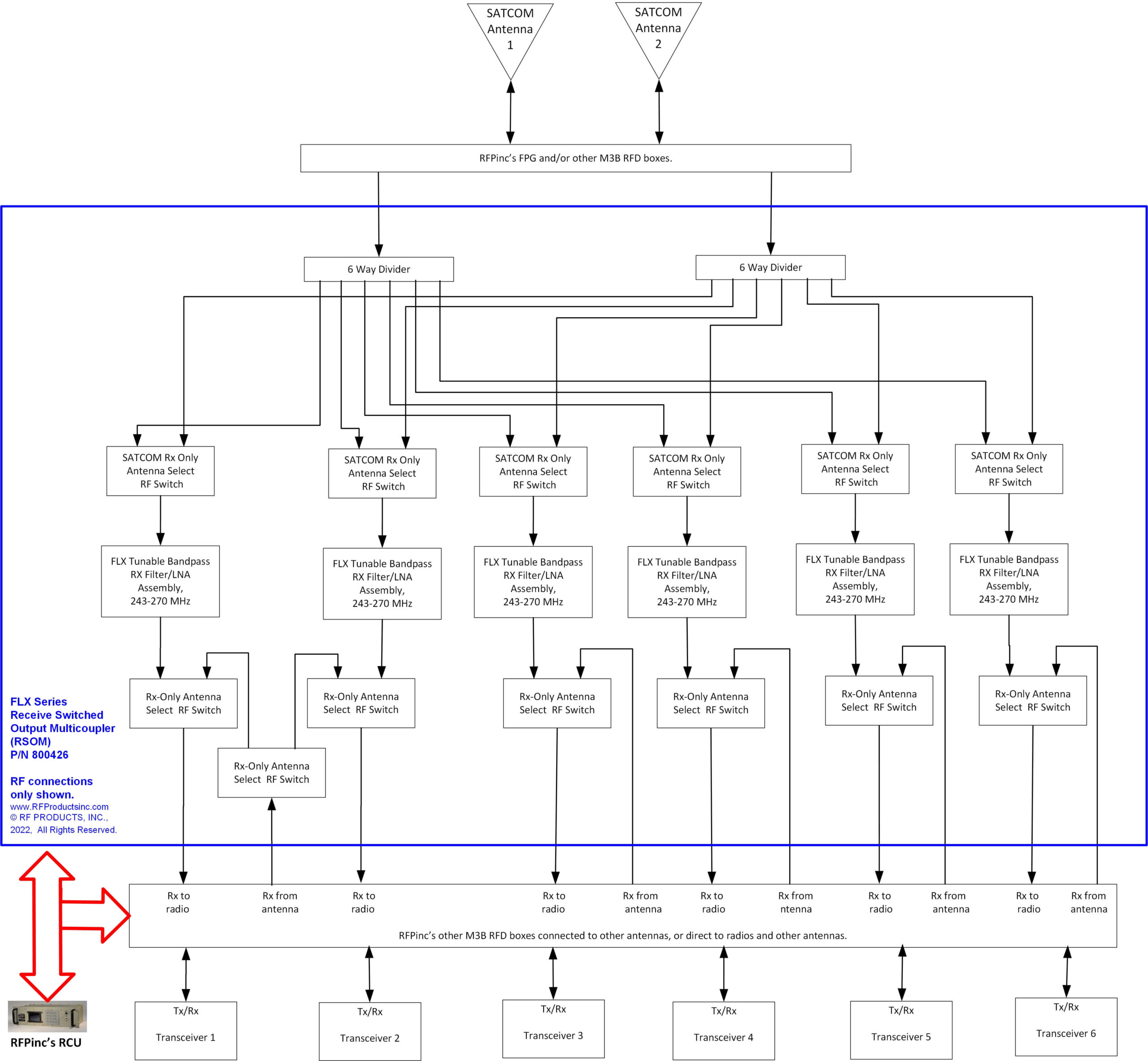

What is it?

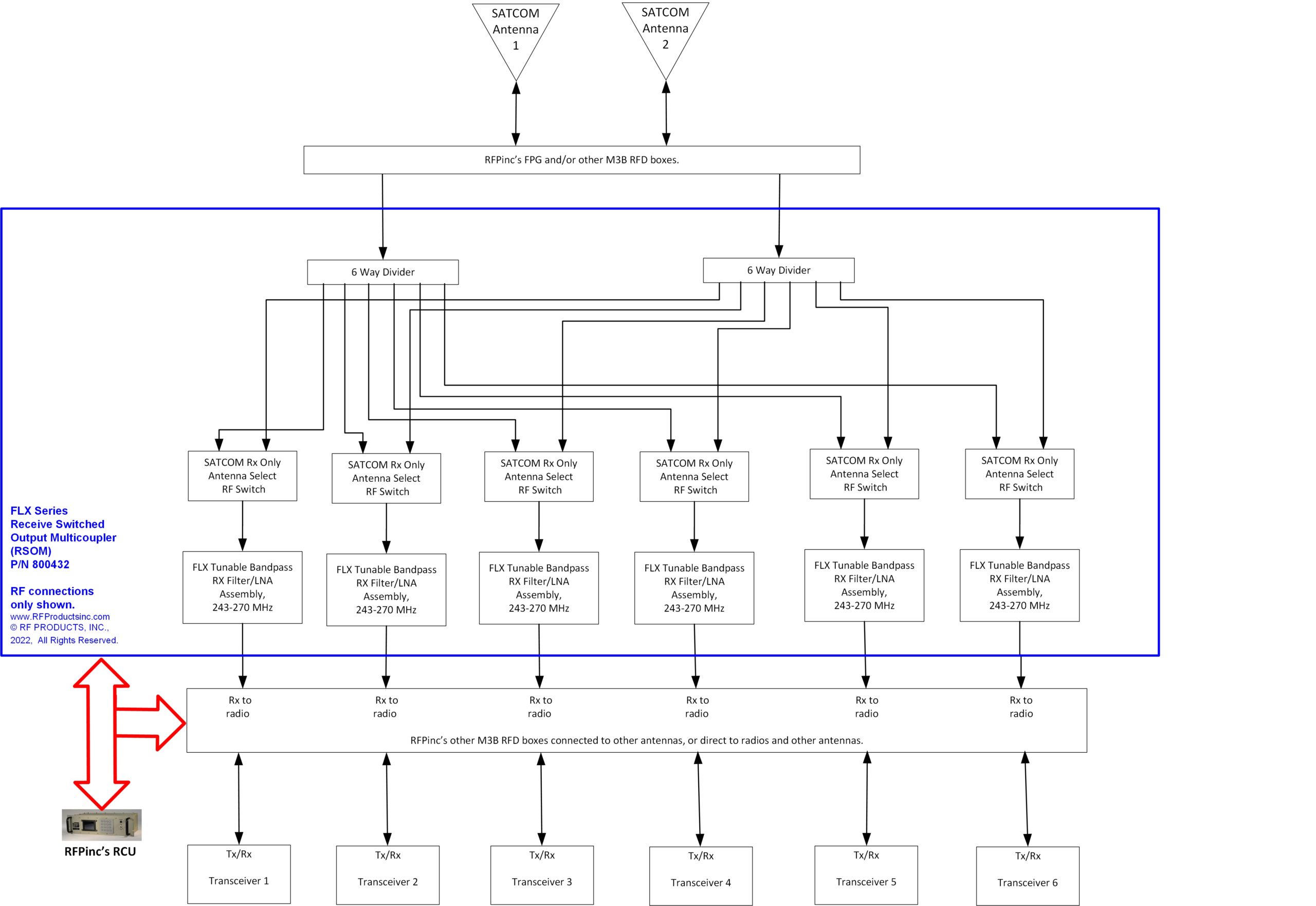

• Receive Switched Output Multicoupler (RSOM).
• Six SATCOM Receive 243-270 MHz, 4-pole FLX tunable bandpass filters.
• Two 6-port splitters with switching so that the 6 filters can be connected to any combination of the 2 splitters.
• Internal switching to bypass the tunable filters and splitters.

What does it do?

• Enables 6 receivers to connect to either of two SATCOM antennas in any combination of the 6 receivers.
• Rejects interfering signals as close as 10 MHz from the desired signal.
• Low noise amplification of the desired signals.
• Fast filter tuning and fast RF switching meet SATCOM waveform requirements.

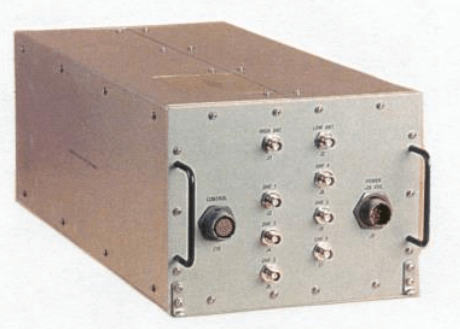

What is it?

• Receive Switched Output Multicoupler (RSOM).
• Six SATCOM Receive 243-270 MHz, 4-pole FLX tunable bandpass filters.
• Two 6-port splitters with switching so that the 6 filters can be connected to any combination of the 2 splitters.
• Internal switching to bypass the tunable filters and splitters.

What does it do?

• Enables 6 receivers to connect to either of two SATCOM antennas in any combination of the 6 raceivers.
• Enables receivers to bypass the tunable filters and splitter to be connected to other antennas for operation in other bands and in LOS.
• Rejects interfering signals as close as 2.5 MHz from the desired signal.
• Low noise amplification of the desired signals.
• Fast filter tuning and fast RF switching meet SATCOM waveform requirements.

What is it?

• 20-port, dual antenna input, Receive-only switched Output Multicoupler (RSOM) over the 30-512 MHz range.
• Includes LNA’s and two splitters with switching so that any receiver can connect to either of the two antennas.
• Filtering to reduce interference.

What does it do?

• Enables up to 20 receivers to connect to either of two antenna inputs.
• As part of RFPinc’s M3B RFD, enables use of the “backup” receive antennas when there is unpredicted interference on the main transceive antenna.
• As part of RFPinc’s M3B RFD, enables use of the receive antenna for guard while at the same time the same radio can continue transceiving on the main antenna on a different frequency.

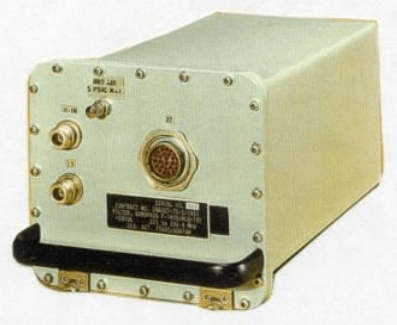

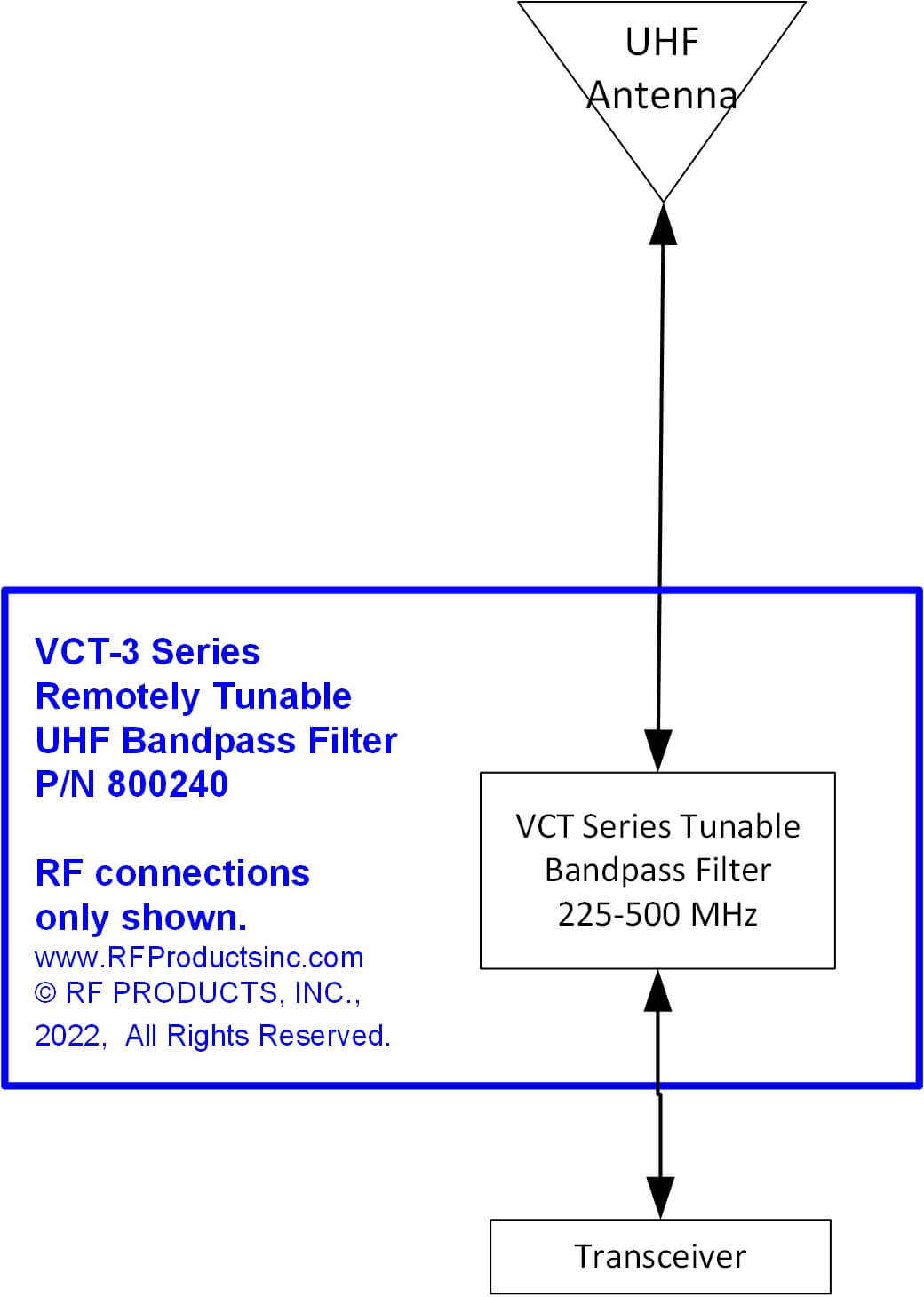

What is it?

• A stand-alone, 380-500 MHz, 3-pole, 3 inch cavity, tuneable bandpass filter.

• Filter tuning remotely controlled.

What does it do?

The 225-500 MHz tuneable bandpass filters add to the isolation between separate antennas to enable multiple collocated radios to operate simultaneously in the 225-500 MHz range.

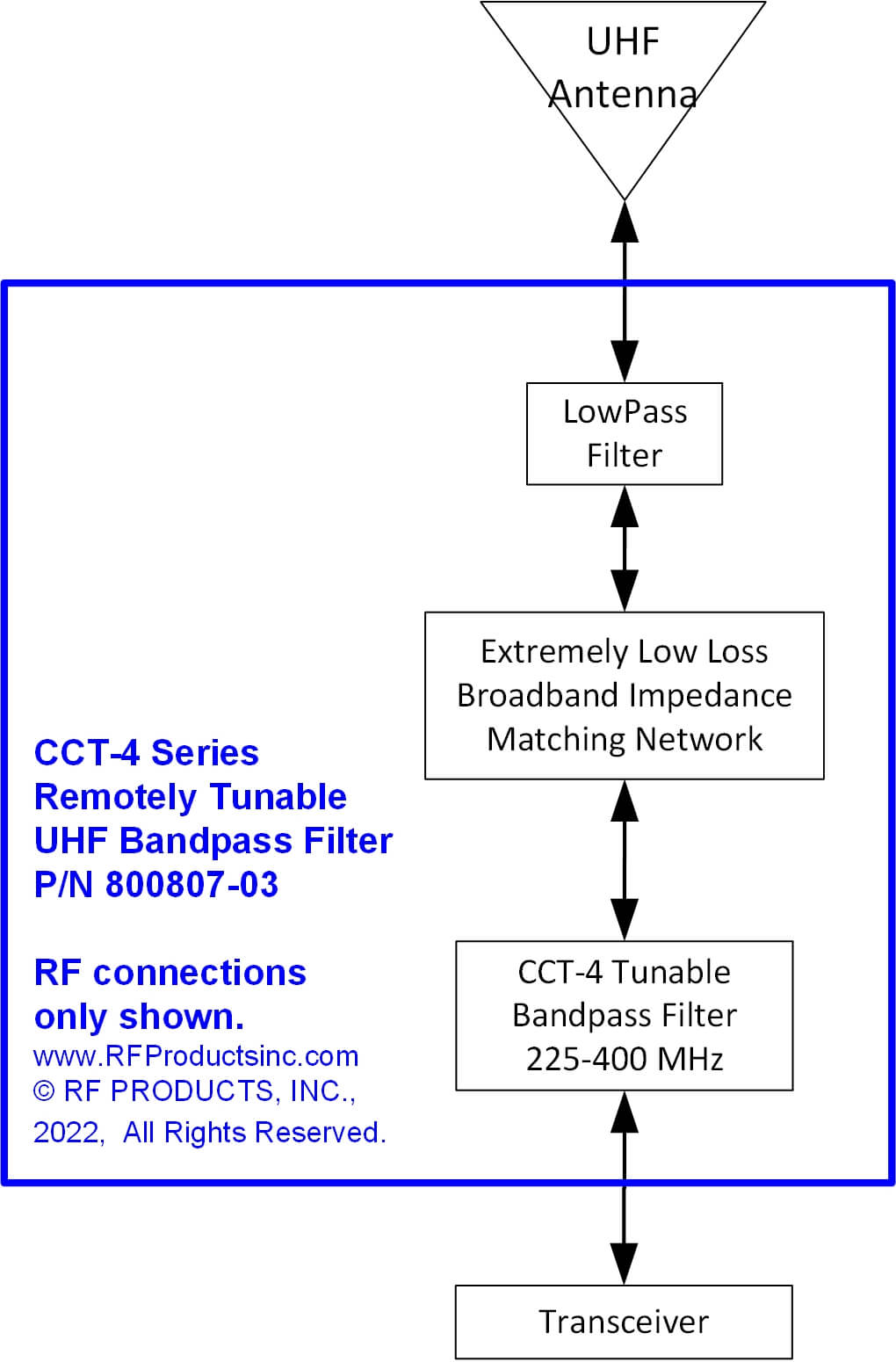

What is it?

• Single filter from the standard multicoupler design in a 19 inch rack mountable box for sheltered environment.
• Includes a single port impedance matching network with lowpass filter.
• Remote controlled via serial interface. Will need new board.

What does it do?

• The 225-400 MHz tuneable bandpass filters add to the isolation between separate antennas to enable multiple collocated radios to operate simultaneously in the 225-400 MHz range.
• The fixed lowpass filter reduces harmonic interference above 400 MHz.

What is it?

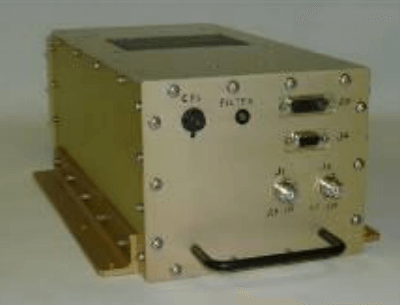

• A 4-pole, 3 inch PIN diode switched fast tuning FLX filter for 225-400 MHz.
• Medium RF power level .
• ARC-210 Control Interface.

What does it do?

Reduces interference between at least two radios operating in 225-400 MHz, both fixed frequency and frequency hopping modes.

What is it?

• A 4-pole, 1.8 inch PIN diode switched fast tuning FLX filter for 225-400 MHz
• Low RF power level.
• ARC-210 Control Interface

What does it do?

Reduces interference between at least two radios operating in 225-400 MHz, both fixed frequency and frequency hopping modes.

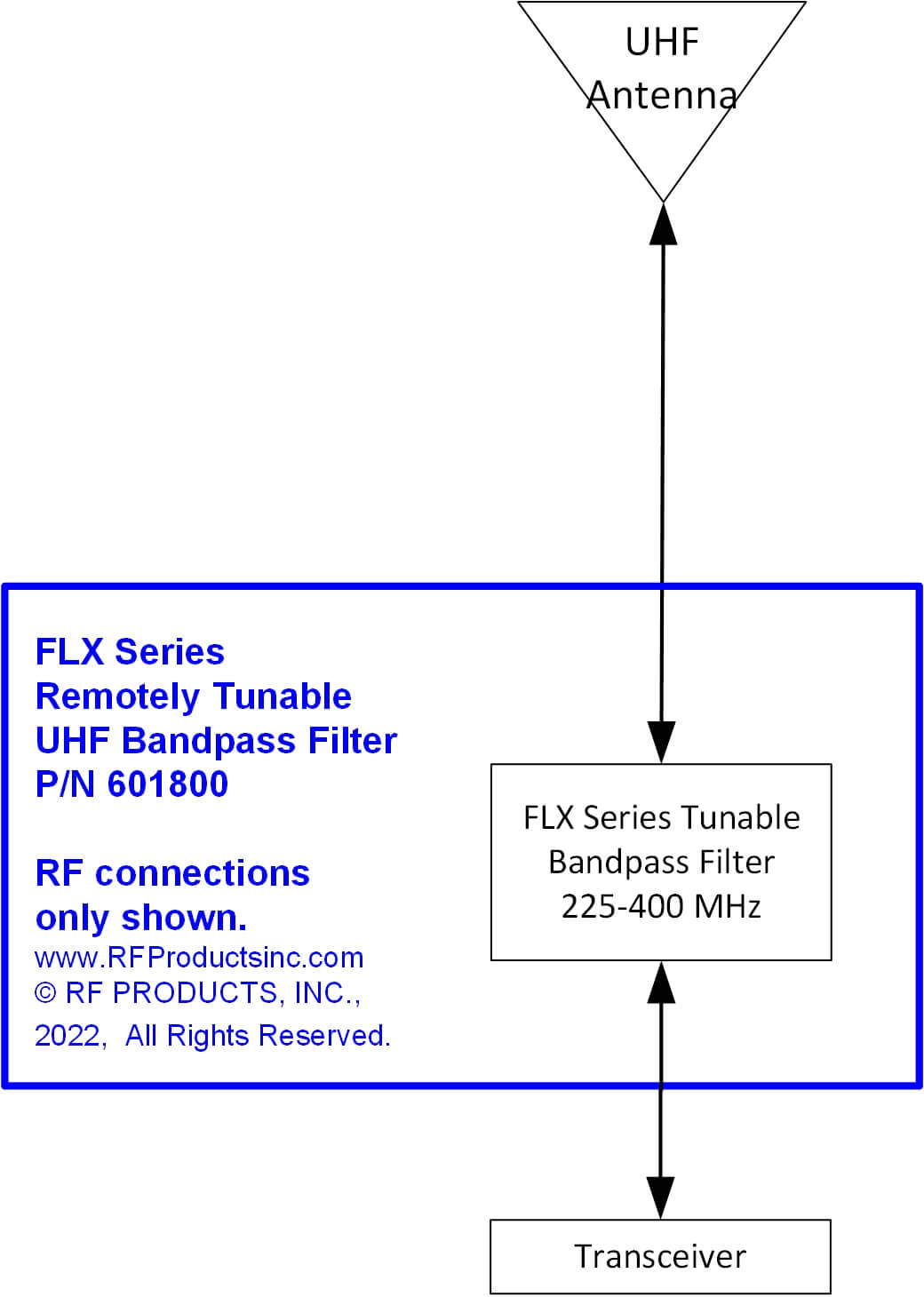

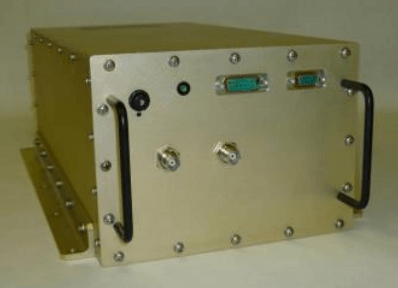

What is it?

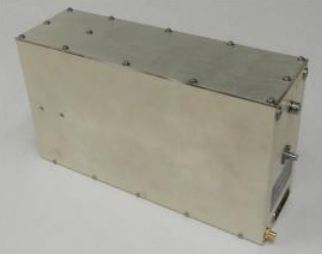

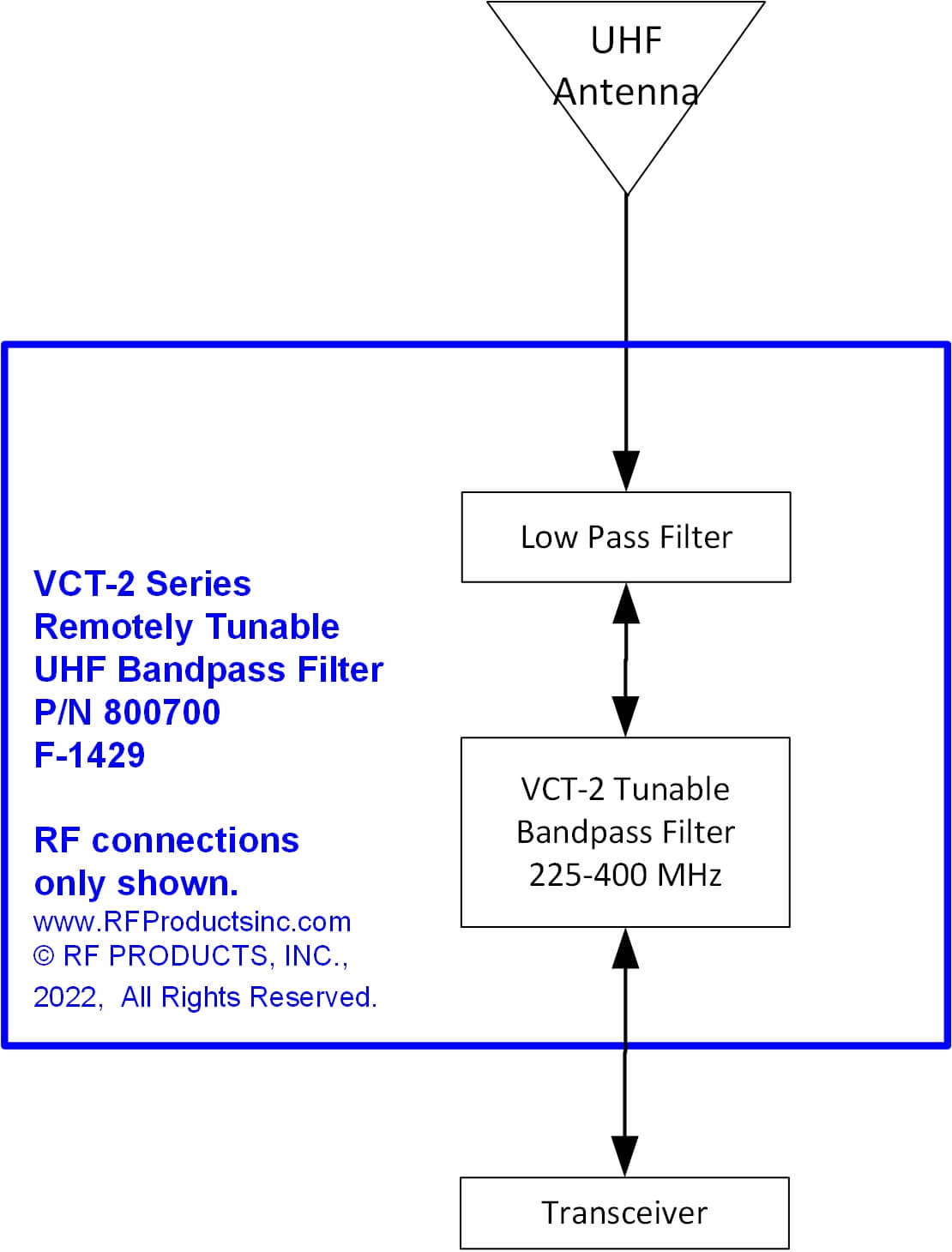

• A stand-alone, 225-400 MHz, 4-pole, 2 inch cavity, tuneable bandpass filter.
• Filter tuning remotely controlled.

What does it do?

The 225-400 MHz tuneable bandpass filter adds to the isolation between separate antennas to enable multiple collocated radios to operate simultaneously in the 225-400 MHz range.

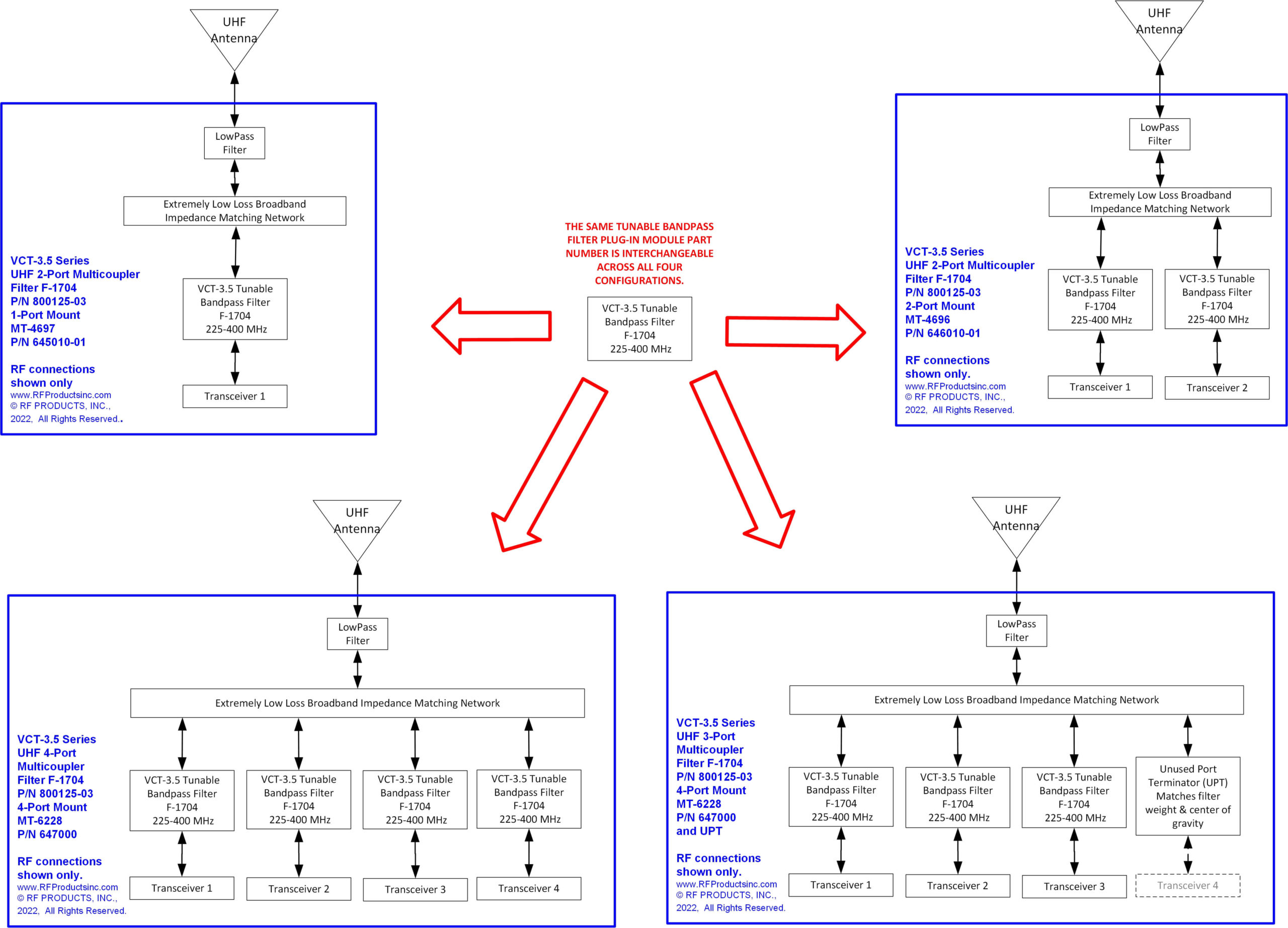

What is it?

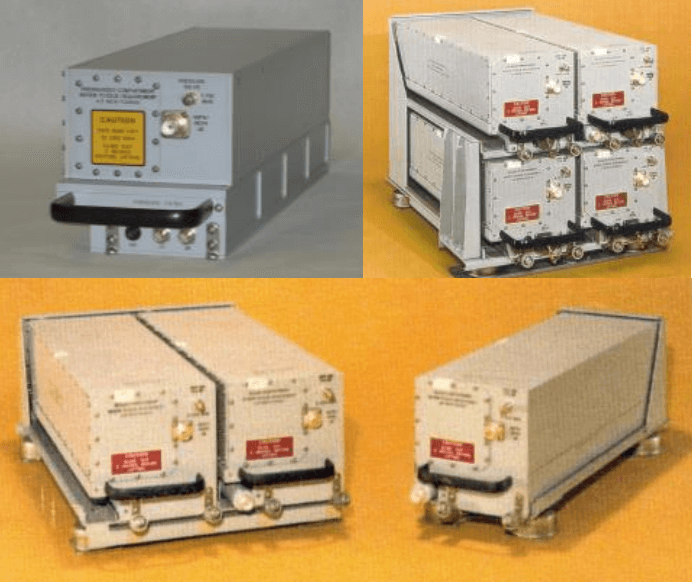

• Tunable bandpass 4-polefilter module that can plug into any of three mounts each with an impedance matching network and lowpass filter:
  • Single filter mount.
  • Two filter mount.
  • Four filter mount.
• Filter tuning to 7,000frequencies from 225 to400 MHz, remotely controlled.
• The filter module is not a stand-alone item and needs a mount with a built-in impedance matching network for operation.
• A 3-port configuration is possible by plugging an Unused Port Termination (UPT) in place of a tuneable filter which equates to lower initial purchase cost + built-in growth.
• Does not include Cross Tuning Prevention.

What does it do?

• Enables up to 4 transceivers to operate simultaneously on 1 antenna in the 225-400 MHz range, in any combination of transmit/receive modes.
• Accepts serial remote control to 7,000 frequencies per filter for filter tuning.
• Reduces spares costs because the same part number filter module plugs into any of the 3 different mounts. For example, an aircraft can use a 1-port mount and a 2-port mount and a 3-port but use the same filter part number across all of the aircraft mounts.
• This works especially well in aircraft where filters are needed for both flight deck radios and the mission radios but the flight deck must be separate than the mission systems.

What is it?

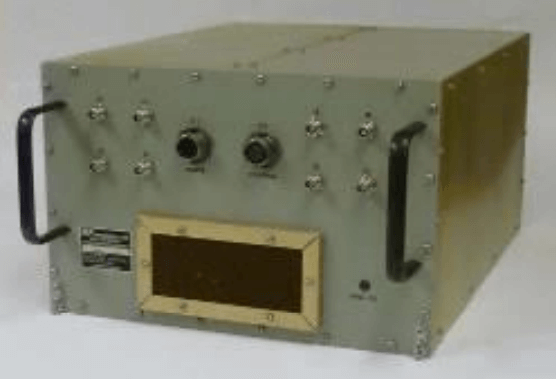

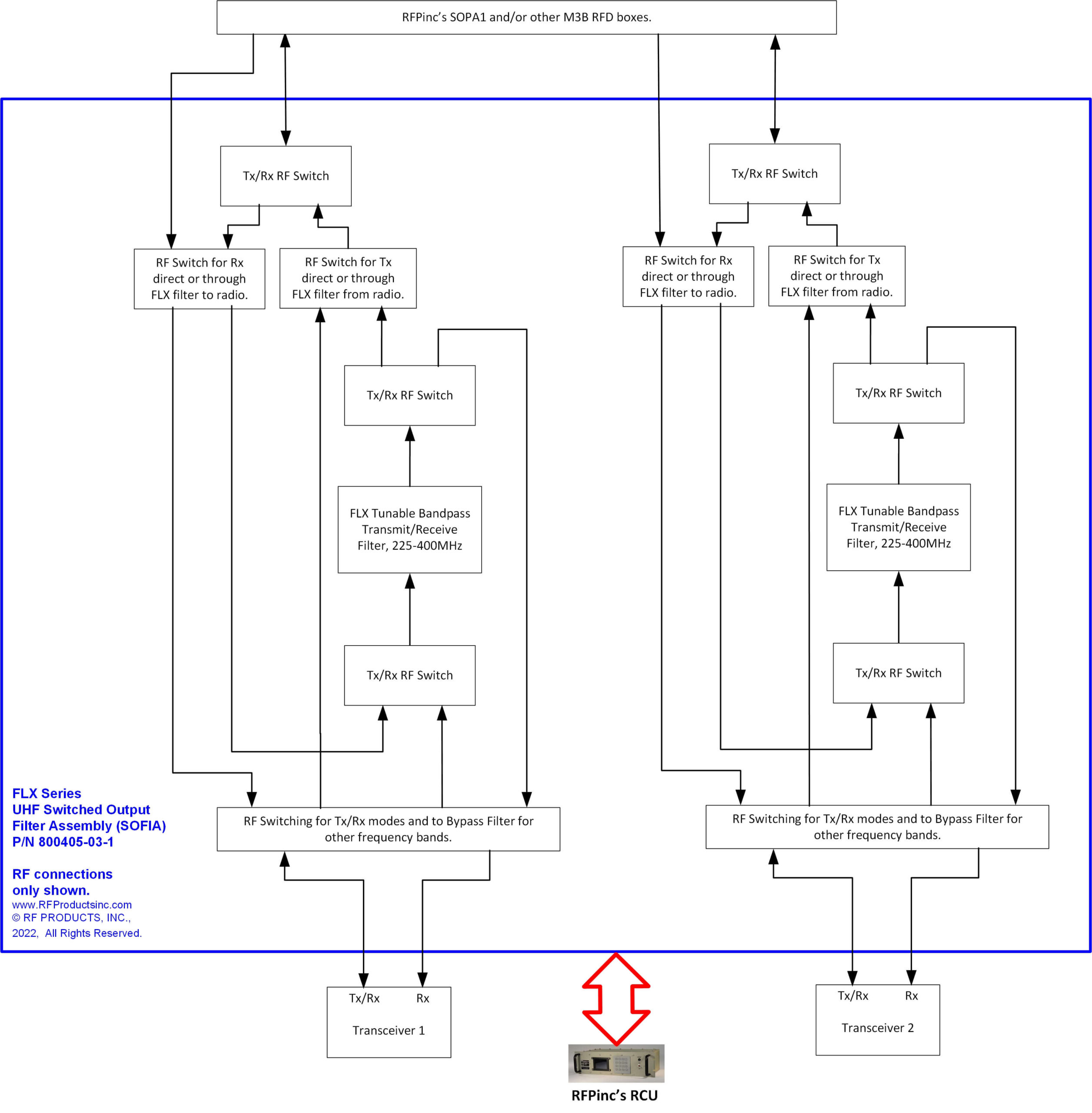

• Switched Output Filter Assembly (SOFIA).
• Includes identical halves, each of which includes a FLX Series 225-400 MHz filters and RF switching for separate transceive and receive paths with filter bypass for operation in 30-174 and 400-512 MHZ ranges.
• Filter tuning is remotely controlled interface from ARC-210 radios.
• RF paths switching is remotely controlled from RFPinc RCU.

What does it do?

• Enables two transceivers to operate in each band from 3 MHz to 512 MHz LOS and in UHF SATCOM.
• Reduces interference between at least two radios operating in 225-400 MHz, both fixed frequency and frequency hopping modes.
• Enables switching between transmit and receive RF port connections on the ARC-210 radio.
• Enables switching between different antennas whether for different transmit / receive modes or for different bands.

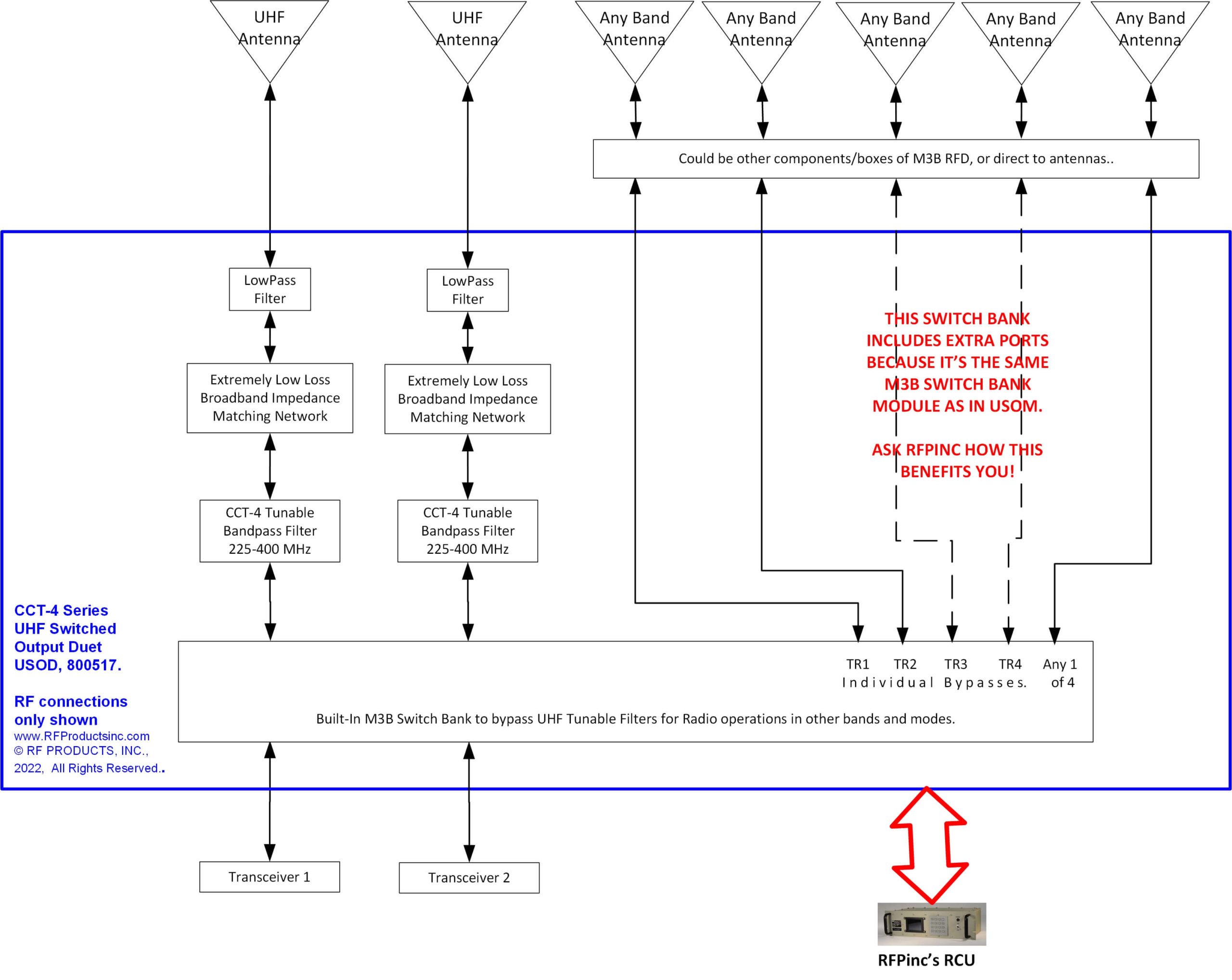

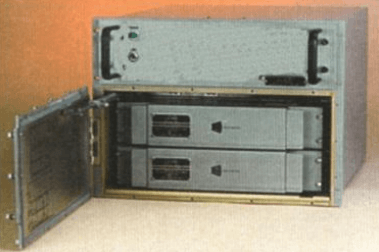

What is it?

• A 2-port filter/Uncoupled “Duet” subsystem.
• Filter tuning remotely controlled.
• 2 tunable bandpass 4-pole filters, 2 single-port impedance matching networks each with its own low pass filter for harmonics suppression.
• Built-in M3B Switch Bank for bypass of UHF filters for multi-band radio operation in other bands/modes. Also enables USOD flexible integration into RFPinc’s M3B RFD.
• Built-in M3B Switch Bank includes choices of both individual bypasses for each radio, or any 1 of 4 bypass.
• Automated filter output switching termination not needed because the filters are not combined to one antenna.
• Includes manual patch panel on rear face so that the USOD can be connected in different configurations either as stand alone or as part of RFPinc’s M3B RFD.

What does it do?

• Enables multi-band software defined radios operation in different bands a modes.
•  Via UHF tunable filters, enables 2 transceivers to operate simultaneously with each radio on its own antenna in the 225-400 MHz range, in any combination of transmit/receive modes.
• Accepts MIL-STD-188 serial remote control to 7,000 frequencies per filter for filter tuning, USN standard interface.
• Vis external adapter saccept remote control interface from ARC-210 family of radios. Can also provide an adapter for other radio interfaces.
• Because there is no combiner, not needed are the other subsystem operation management functions such as transmit inhibit during filter tuning, adjacent channel separation management, cross tuning prevention, etc.
• Spares commonality with USOM via same RFI/Switch Bank drawer part number.

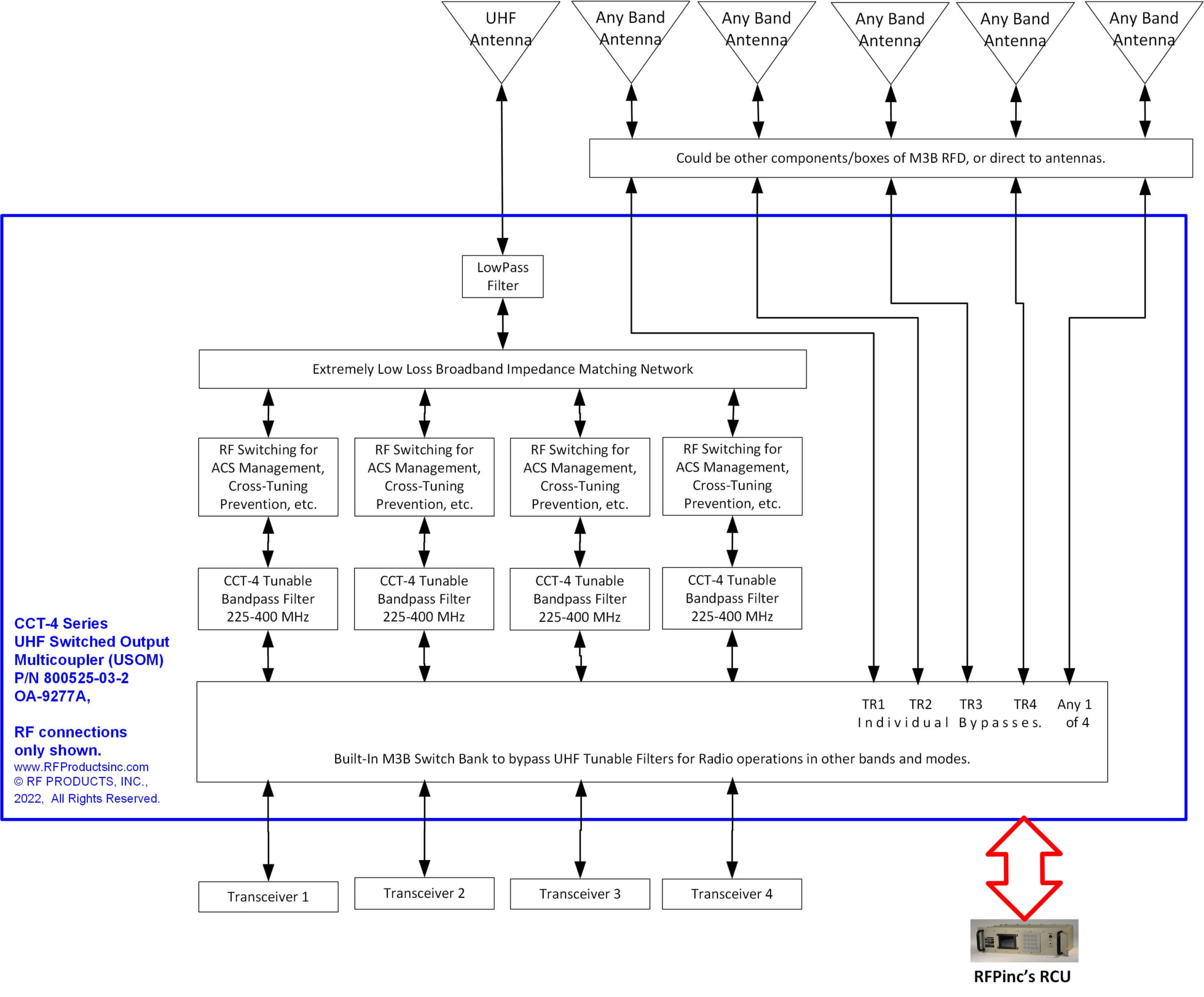

What is it?

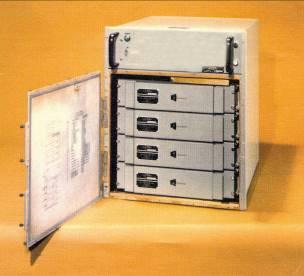

• A 4-Port UHF Switched Output Multicoupler (USOM).
• 4 tunable bandpass 4-pole filters, extremely-low-loss, 4-port impedance matching network with low pass filter for harmonics suppression, automated filter output switching termination.
• 4-port filter/multicoupler with built-in M3B Switch Bank for bypass of UHF filter/combiner for multiband radio operation in other bands/modes. Also enables USOM flexible integration into RFPinc’s M3B RFD.
• Remotely controlled, built-in M3B Switch Bank includes choices of individual bypasses for each radio, or any 1 of 4 bypass.
• Includes manual patch panel on rear face so that the USOM can be connected in different configurations either as stand alone or as part of RFPinc’s M3B RFD.
• Filter tuning remotely controlled.

What does it do?

• Enables 4 UHF transceivers to operate simultaneously on one antenna in the 225-400 MHz range, in any combination of transmit/receive modes.
• Enables multi-band software defined radios operation in different bands a modes.
• Accepts Australian Navy serial interface remote control to 7,000 frequencies per filter for filter tuning.
• External adapter available to accept remote control interface from ARC-210 family of radios. Can also provide an adapter for other radio interfaces.
• From previous (pre-2009 year) CCT-4 multicoupler versions: Maximum deletion of obsolete functions and parts. Diminished source parts replaced. Backward radio system RF architecture interchangeability retained while forward radio/M3B RFD system is greatly expanded.
• Includes many other subsystem operation management functions such as transmit inhibit during filter tuning, Adjacent Channel Separation management, Cross Tuning Prevention, etc.

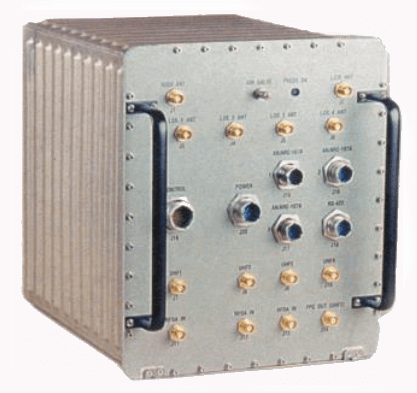

What is it?

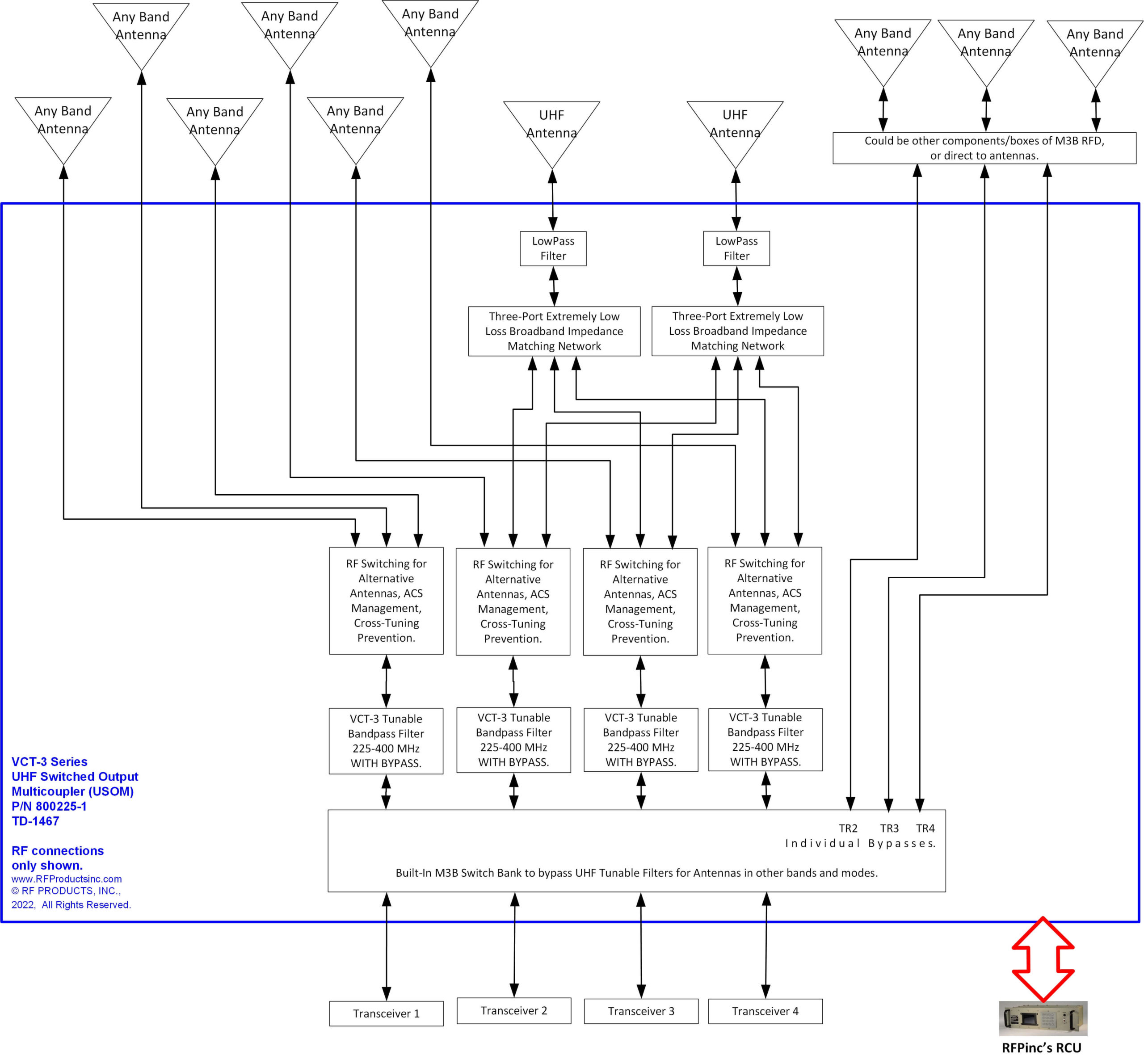

• UHF Switched Output Multicoupler (USOM).
• Configured as a dual 3-port filter/multicoupler subsystem with a direct output 4th filter .
• Four tunable bandpass 3-pole filters.
• Two extremely-low-loss, 3-port impedance matching networks with low pass filters for harmonics suppression.
• 3 filters that can independently connect through either of the 2 3-port combiners, or bypass the combiners.
• 4th filter that can independently connect between different output connections.
• Any or all of the 4 filters can be bypassed for operation in frequencies not in the filter’s UHF range.
• Automated filter output switching termination.
• Filter tuning and RF path switching remotely controlled.

What does it do?

• Enables collocated multi-band radios to operate in different bands and modes simultaneously while also suppressing cosite interference.
• Enables filtered operation in non-hopping UHF LOS or in UHF SATCOM.
• Reduces antenna population by enabling up to 3 transceivers to operate simultaneously in transmit or receive modes on one antenna.
• Can be used stand-alone or as part of RFPinc’s ARC-233 Multi-Mode, Multi-Band RF Distribution System (M3B RFD).
